Especially with carbide saw blades, the operator must pay special attention to the load weight on the carousel of the coating machine. This weight can easily reach more than 1 ton total weight. If the weight exceeds the maximum allowable load, it can have a negative effect on the rotation during the coating process, resulting in poor distribution of the coating in the chamber or even damage to the carousel, e.g., the rotary drive.
On the other hand, saw blades react to large temperature differences and can rapidly lose cutting force or become deformed. Due to the high content of heat-sensitive steel in these tools, precise control of the process temperature is essential.
PVD coating therefore requires units that can optimally handle the masses of the saw blades and whose heating and cooling times are adapted to temperature-sensitive materials.

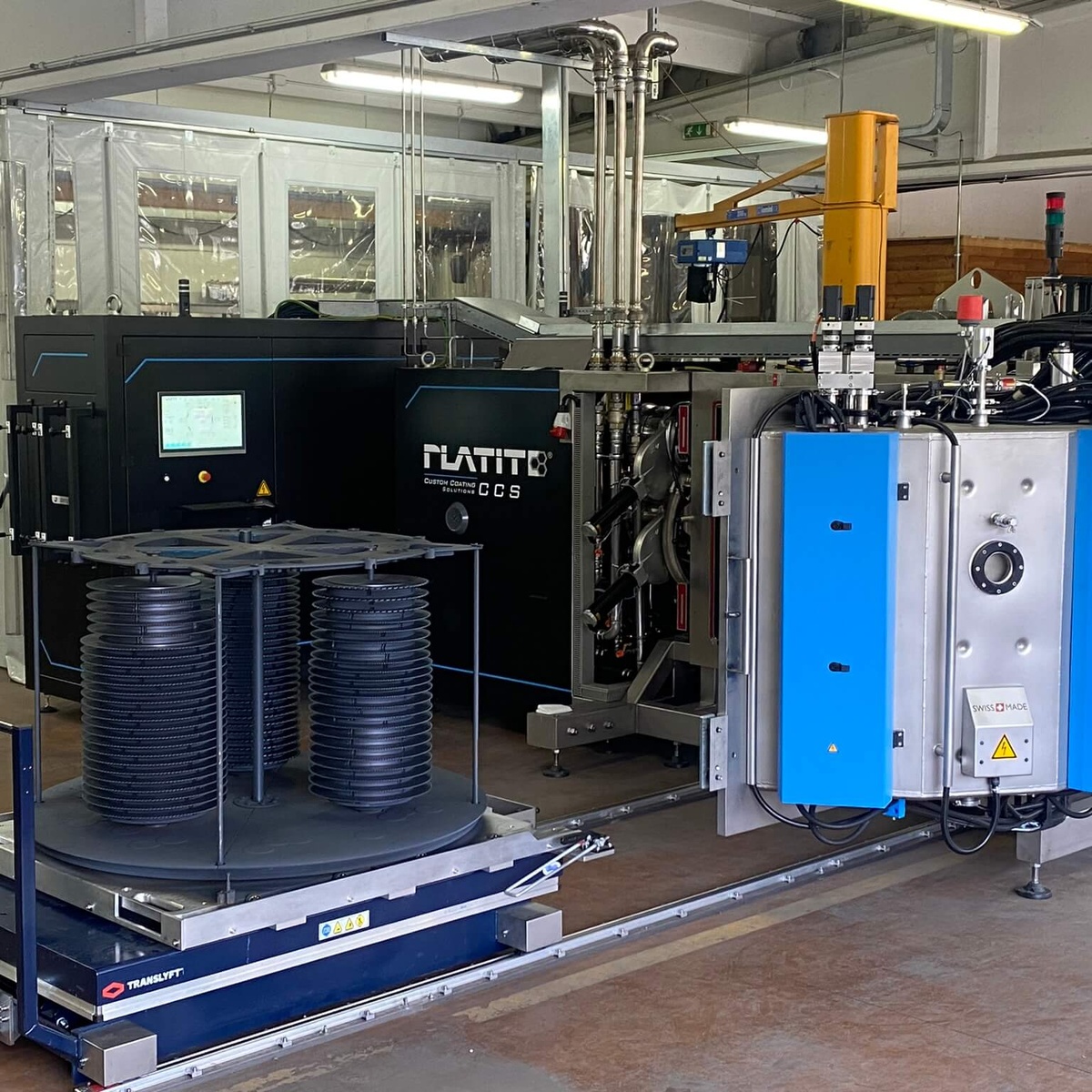

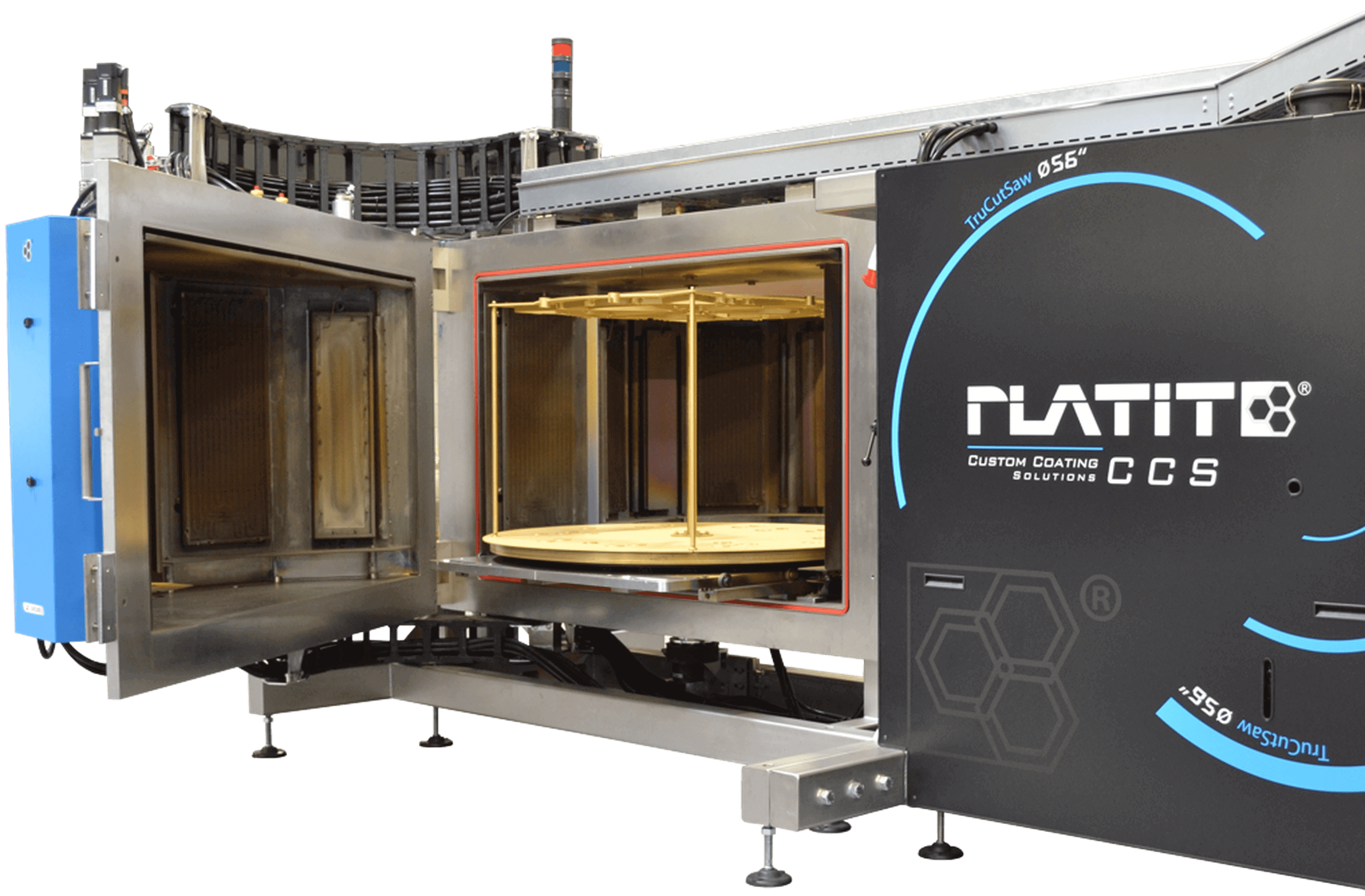

For high-quality, durable tool coating, PLATIT has designed and developed custom coating solutions specifically for saw blades.
Tru-Cut Saw is a well-known manufacturer of saw blades in the U.S. The Brunswick, Ohio-based company manufactures saw blades of various dimensions and for all types of applications, from wood to metalworking. The largest saw blades ever made were over 3000mm in diameter at Tru-Cut.
Max. coating volume [mm]
ø715 x H805
ø1400 x H700
Max. load [kg]
4 x Planar cathode, upgradable for Double-Pulsed feature
6 x Planar arc cathode, 4 of which pulsed with ARC power supplies
